Off Grid Solar Power System Lifepo4 Lithium Ion Battery 48v 96v 192v 100ah 200ah 300ah 400ah

Off Grid Solar Power System Lifepo4 Lithium Ion Battery 48v 96v 192v 100ah 200ah 300ah 400ah

Lithium Ion Battery 48v 100ah

Off Grid Lithium Ion Battery 96v

Place of Origin:

Hunan,China

Brand Name:

CTS

Certification:

CE

Model Number:

CTS-48100

Contact Us

Request A Quote
Product Details
Product Name:
Lifepo4 100ah 48v Lithium Ion Battery
Battery Type:
Server Rack Lifepo4 48v Battery
OEM/ODM:
Yes(Accepted)
Nominal Capacity:
100Ah 200Ah
Certification:
CE, UN38.3
Cycle Life:
>6000 Times
Payment & Shipping Terms
Minimum Order Quantity
10 unit
Packaging Details
Polywood case
Delivery Time
15-20 working days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
5000 untis per month
Product Description
Off grid solar power system lifepo4 48v 96v 192v 100ah 200ah 300ah 400ah lithium ion batteryOff Grid Solar Power System Lifepo4 Lithium Ion Battery 48v 96v 192v 100ah 200ah 300ah 400ah 0

Model
48100
48200
Cell Type- Chemistry
LiFePO4
LiFePO4
Rated Voltage
51.2v
51.2v
Rated Capacity
100ah
200ah
Energy
5120Wh
10240Wh
Self Discharge
< 4% per month
< 4% per month
Maximum Modules in Parallel
16
16

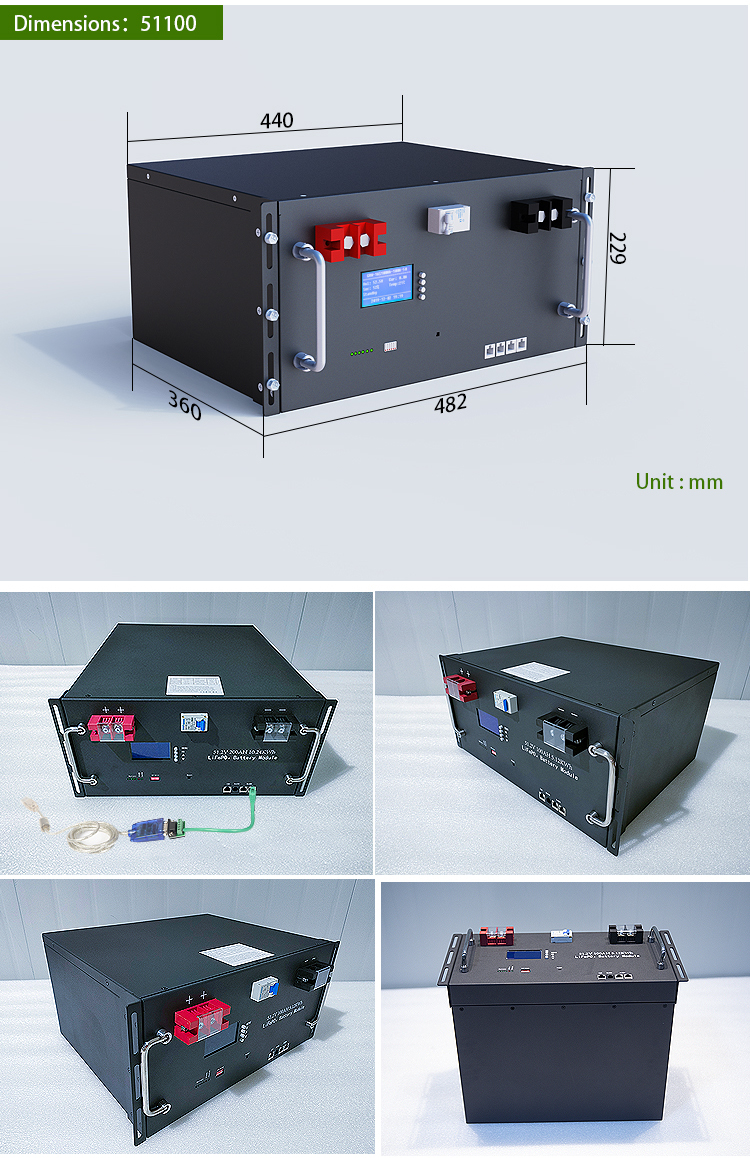

Dimensions(L x W x H)
440*360*229mm
440*540*229mm
Weight
48kg
85kg
Discharge/charge Specifications
Discharge Cut-off Voltage
40v
40v
Max Continuous Discharging Current
100A
100A
Peak Discharge Current
200A for 3 seconds
200A for 3 seconds
Recommended
Discharge Current
100A
100A
Charge Specifications
Charging Limited Voltage
58.4v
58.4
Max Charging Current
100A
100A
Recommended Charge Current
50A
50A
Temperature Specifications
Charge Temperature Range
0~45℃
Discharge Temperature Range
-20~60℃
Recommended Operating Temp
15~35℃
Storage Temperature
& Humidity
Range(Less than 3 months)
-10~35℃, 45~75%RH
Recommended Storage Temp
15~35℃, 45~75%RH
Warranty
5 years
Life cycles
> 6000

Design life
10+ year
Off Grid Solar Power System Lifepo4 Lithium Ion Battery 48v 96v 192v 100ah 200ah 300ah 400ah 1

Off Grid Solar Power System Lifepo4 Lithium Ion Battery 48v 96v 192v 100ah 200ah 300ah 400ah 2

Eight Features



1. Compatibility 2. Expansibility

Compatiable with various inverter brands, Support max 64pcs in parallel, which is equals to 48v
Victron, Goodwe, Pylon, Growatt, Solis, Lux 6400ah, meet all different house demands.
, Solax, Sofar, Sacolar

3. Efficiency 4. Longevity

Features 99% Operating Efficiency vs 80% A+++ Cells with 6000cycles 80%DOD, 15 years of use
for AGM batteries. An equivalence of adding even if you deep discharge it every day.
20% additional solar panels to your current
system.

5. Fastest shipment 6. Quickest installation

Samples ready in a week. Plug and play, all installing material for free, easy and
quick.

7. Safest structure 8.Title goes here.

All Cells are bolted together with heavy plates RS485 and CAN on from panel with RJ45 port, plug and
and ABS holder for very reliable connections play.
internally
Off Grid Solar Power System Lifepo4 Lithium Ion Battery 48v 96v 192v 100ah 200ah 300ah 400ah 3
Off Grid Solar Power System Lifepo4 Lithium Ion Battery 48v 96v 192v 100ah 200ah 300ah 400ah 4
